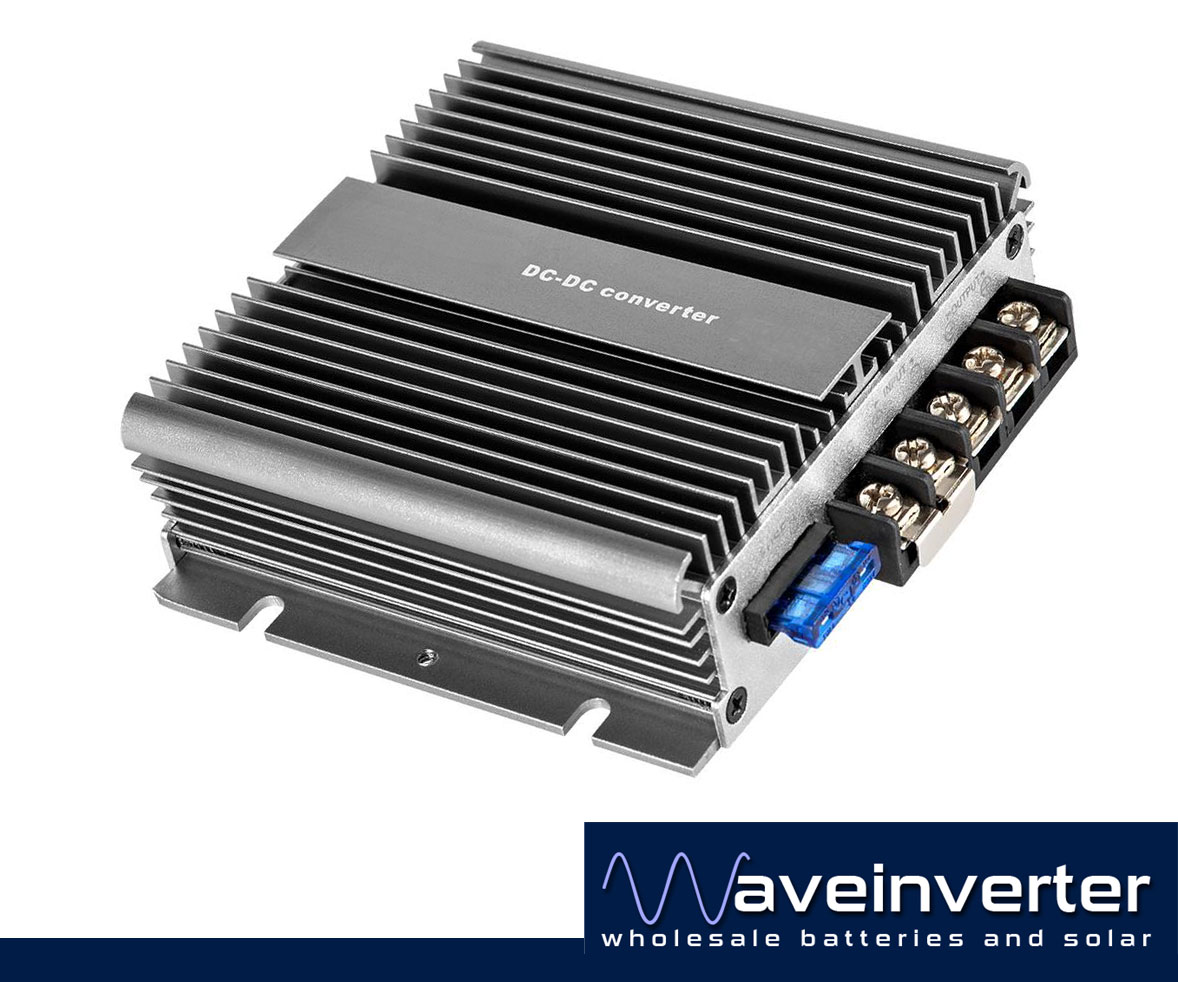

48V/72V/80V to 12V DC 30A Step-Down Converter with ACC Control

$450.00

SKU: YPCV25 Categories: , Tags: ,

Description

Use this 48v/72v/80v to 12v DC Converter to create a 12v circuit off your 48v , 72v or 80v Battery / Powersource

Practical and portable solution to your power problems. Compact converter in tough aluminium shell with mounting holes.
Waterproof, sealed and enclosed to IP68

Input Voltage: 40V – 95V
Output Voltage: 12V
Max output current: 30A (12V)
Size: 103 x 113 x 35mm
Weight: 0.75kg
Efficiency: up to 95%
Ripple(full load test): Less Than 100mV
No-load Current: 50mA-60mA
Temperature range: -40 to 85C
Waterproof sealed
Cooling by free air convection
Electrical protection: Over-current, over-voltage protections, Over-temperature, shutdown, short-circuit, reverse polarity protections
Physical protection: IP68
Protection: Over-current, over-temperature, short circuit protection, Self-Recovery, Waterproof, corrosion proof, Dust-proof, Shockproof, Suitable for all kinds of harsh environments.

Controlled by vehicle ignition option.  If not needed do not connect to the ACC terminal.



Comes in aluminium enclosure and heat sink


Electrical Safety and Electromagnetic standards

EN 60950-1:2006/AC:2011
Information technology equipment. Safety, General requirements

EN 50498:2010
Electromagnetic compatibility (EMC). Product family standard for aftermarket electronic equipment in vehicles

EN 61000-6-3:2007/A1:2011/AC:2012
Electromagnetic compatibility (EMC), Generic standards. Emission standard for residential, commercial and light-industrial environments

EN 55014-1:2006/A2:2011
Electromagnetic compatibility. Requirements for household appliances, electric tools and similar apparatus, Emission

NOTE: Do not exceed 360w (30A) using this converter.



Comes with 12 month RTB Warranty





Additional information

Weight 2.3 kg
