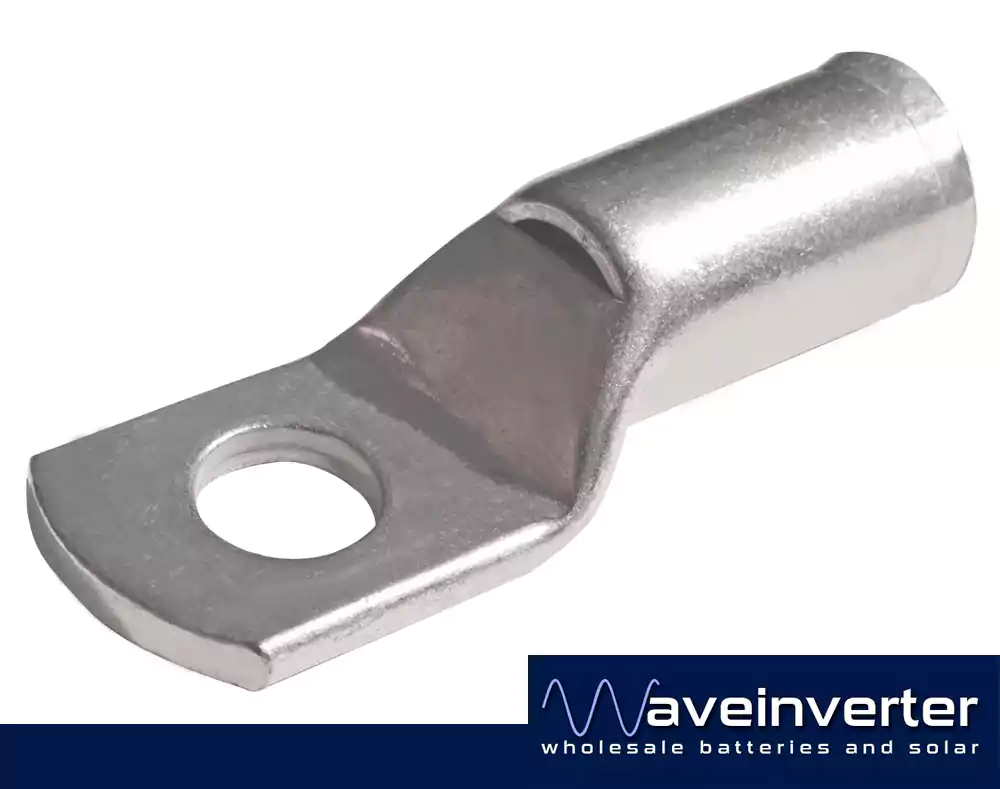

Cable Lug Terminal 35mm2


size *

SKU: YPCN37 Categories: , Tags: , , ,


This is for a single terminal

Fits cable up to 35mm2 (AWG 2). Made from Pure Electrical Copper, with a tin coating for corrosion resistance.  maximum continuous current 150 Amps (200 Amps on 60% duty cycle).

Connector Width is 15mm

We have these with eyes to fit M6, M8 or M10 bolt, select below

1) For high current power distribution.

2) Cable can be crimped or soldered to the terminal.

We have these in 16mm2, 35mm2, 50mm2 and 95mm2


Additional information

Weight 0.1 kg
Dimensions 5 × 10 × 10 cm
