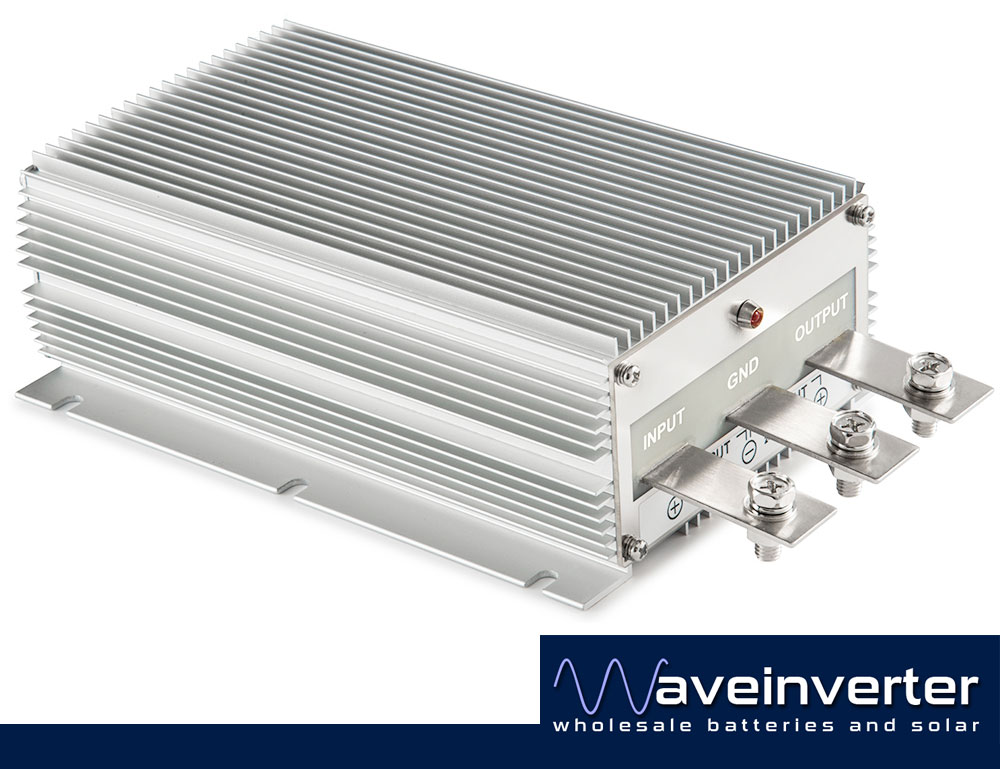

12V to 24V DC Step-Up Booster Converter 40A


SKU: YPCV21 Categories: , Tags: ,


Use this 12v to 24v DC Converter to create a 24v circuit off your 12v Battery or Powersource.

Practical and portable solution to your power problems.  Compact converter in tough aluminium shell with mounting holes.
Easy and safe to use, with overheating and overcurrent protection.
Waterproof, sealed and enclosed to IP68

Input voltage range: from 11 to 16V
Output Voltage: 24V
Max output current: 40A (24V)
Size: 22 x 13 x 6.4 cm
Weight: 2.2kg
Efficiency: up to 95%
Ripple(full load test): Less Than 100mV
No-load Current: 50mA-60mA
Waterproof sealed
Cooling by free air convection
Electrical protection: Over-current, over-voltage protections, Over-temperature, shutdown, short-circuit, reverse polarity protections
Physical protection: IP68

Electrical Safety and Electromagnetic standards

EN 60950-1:2006/AC:2011
Information technology equipment. Safety, General requirements

EN 50498:2010
Electromagnetic compatibility (EMC). Product family standard for aftermarket electronic equipment in vehicles

EN 61000-6-3:2007/A1:2011/AC:2012
Electromagnetic compatibility (EMC), Generic standards. Emission standard for residential, commercial and light-industrial environments

EN 55014-1:2006/A2:2011
Electromagnetic compatibility. Requirements for household appliances, electric tools and similar apparatus, Emission


NOTE: Do not exceed 960w (40A) using this converter.

Comes with 12 month RTB Warranty
