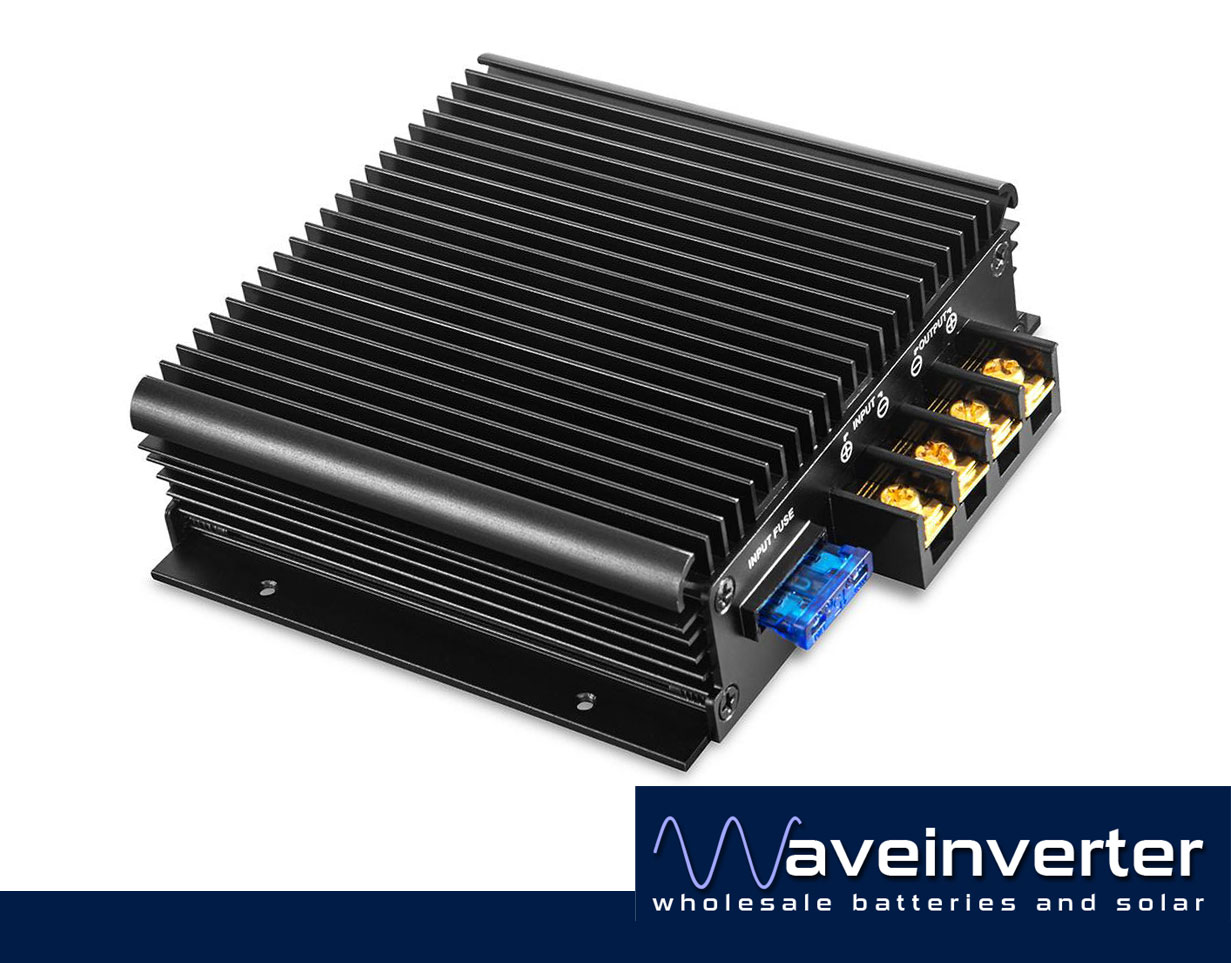

48V/72V/80V to 12V DC 20A Step-Down Converter


SKU: YPCV24 Categories: , Tags: ,


Use this 48v/72v/80v to 12v DC Converter to create a 12v circuit off your 48v , 72v or 80v Battery / Powersource

Practical and portable solution to your power problems. Compact converter in tough aluminium shell with mounting holes.
Waterproof, sealed and enclosed to IP68

Input Voltage: 40V – 95V
Output Voltage: 12V
Max output current: 20A (12V)
Size: 103 x 113 x 35mm
Weight: 0.75kg
Efficiency: up to 95%
Ripple(full load test): Less Than 100mV
No-load Current: 50mA-60mA
Temperature range: -40 to 85C
Waterproof sealed
Cooling by free air convection
Electrical protection: Over-current, over-voltage protections, Over-temperature, shutdown, short-circuit, reverse polarity protections
Physical protection: IP68
Protection: Over-current, over-temperature, short circuit protection, Self-Recovery, Waterproof, corrosion proof, Dust-proof, Shockproof, Suitable for all kinds of harsh environments.

Comes in aluminium enclosure and heat sink


Electrical Safety and Electromagnetic standards

EN 60950-1:2006/AC:2011
Information technology equipment. Safety, General requirements

EN 50498:2010
Electromagnetic compatibility (EMC). Product family standard for aftermarket electronic equipment in vehicles

EN 61000-6-3:2007/A1:2011/AC:2012
Electromagnetic compatibility (EMC), Generic standards. Emission standard for residential, commercial and light-industrial environments

EN 55014-1:2006/A2:2011
Electromagnetic compatibility. Requirements for household appliances, electric tools and similar apparatus, Emission


NOTE: Do not exceed 240w (20A) using this converter.


Comes with 12 month RTB Warranty
